Industrial valve systems need dependable operating mechanisms. Large valves often require more torque than a person can apply directly. Therefore, a suitable gearbox can make valve operation easier and more controlled.
A Non Rising Valve Gearbox is designed for valves where the valve stem does not move upward or downward during operation. Instead, the stem rotates within the valve assembly. This design can save space and support convenient installation.
These gearboxes are useful in water treatment plants, pipelines, industrial facilities, and other applications. Moreover, they can provide better mechanical advantage when valves require higher operating torque.
Jayveer Enterprise provides industrial gearbox solutions for different valve applications. The right gearbox can support reliable performance while reducing manual operating effort.

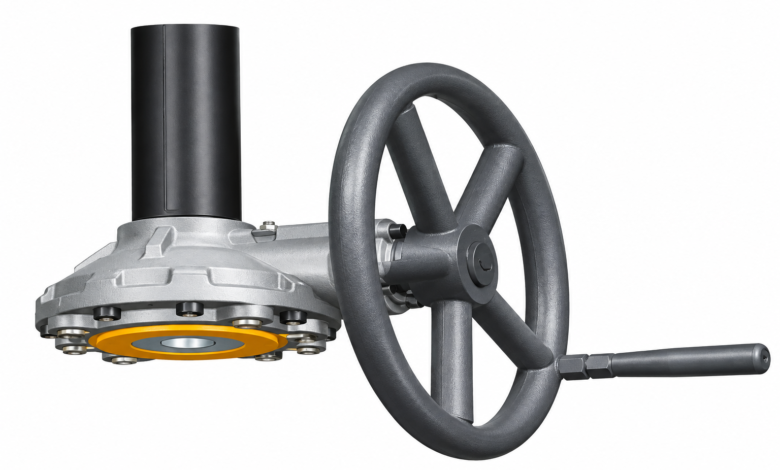

What Is a Non Rising Valve Gearbox?
A Non Rising Valve Gearbox is a mechanical operating unit used with valves that have a non-rising stem arrangement. During valve operation, the stem rotates without moving vertically.
The gearbox transfers input torque to the valve mechanism. As a result, operators can open or close larger valves with less physical effort.
This design also offers a practical advantage in areas with limited vertical space. Since the stem does not rise above the valve, the installation can remain more compact.
However, proper gearbox selection is important. The unit should match the valve’s torque, size, operating conditions, and mounting arrangement.
How Does a Non Rising Valve Gearbox Work?
The gearbox uses internal gears to transmit rotational force. When an operator turns the input mechanism, the gears transfer torque to the valve stem.
The valve stem then rotates the internal valve component. This movement changes the flow passage and allows the valve to open or close.
The gear ratio determines the mechanical advantage. A suitable ratio can reduce the input effort required from the operator.
Furthermore, the gearbox can provide controlled movement. This feature is useful when operators need precise and steady valve operation.
The exact design varies according to the valve and application. Therefore, engineers should confirm compatibility before installation.
Benefits of a Non Rising Valve Gearbox
A properly selected Non Rising Valve Gearbox can provide several benefits for industrial valve systems.
First, it can reduce the manual effort needed to operate high-torque valves. This makes routine valve operation more convenient.
Second, the compact arrangement can work well where vertical space is restricted. This can simplify installation in certain industrial environments.
Other benefits include:
- Reduced operating effort
- Efficient torque transmission
- Compact installation
- Controlled valve movement
- Reliable mechanical operation
- Suitable operation of larger valves
- Easier manual handling
In addition, a quality gearbox can support consistent operation over repeated cycles. Regular maintenance can further improve its working life.
However, the gearbox should always be selected according to the actual valve requirements.
Where Are Non Rising Valve Gearboxes Used?
Non-rising stem valves are common in several industries. Therefore, their gearboxes also have applications across different industrial systems.
Water Treatment Plants
Water treatment facilities contain numerous valves. Operators need to control water flow through pipelines and treatment systems.
A gearbox can make larger valves easier to operate. It can also provide controlled movement during regular maintenance.
Industrial Pipelines
Pipelines often use large valves to control fluid movement. Direct operation can require significant force.
A Non Rising Valve Gearbox can provide the required mechanical advantage. Therefore, it can support smoother valve operation.
Manufacturing Facilities
Manufacturing plants use valves for water, chemicals, air, and other process fluids. Reliable valve operation helps maintain continuous processes.
A suitable gearbox can support frequent operating requirements in these facilities.
Utility Systems
Utility networks may use valves in restricted areas. The compact design of a non-rising arrangement can be useful in such locations.
Factors to Consider Before Selection
Choosing the right Non Rising Valve Gearbox requires careful evaluation. Valve size alone does not determine the correct gearbox.
The required operating torque is one of the most important factors. The gearbox must deliver enough output torque to operate the valve safely.
Mounting compatibility also matters. The gearbox should fit the valve stem and mounting arrangement correctly.
Operating frequency should also be considered. A valve that operates several times each day may require different specifications from a rarely operated valve.
Consider these factors before purchasing:
- Valve size
- Required operating torque
- Gear ratio
- Mounting arrangement
- Operating frequency
- Installation space
- Environmental conditions
- Maintenance requirements
Additionally, businesses should confirm product specifications with the manufacturer or supplier.
Importance of Quality Manufacturing
Gearboxes work under mechanical loads during every operating cycle. Therefore, manufacturing quality directly affects their reliability.
Strong gears and suitable housing materials can support dependable operation. Proper machining can also improve gear alignment and reduce unnecessary wear.
Sealing is another important consideration. A suitable enclosure can help protect internal components from dust and environmental exposure.
Jayveer Enterprise offers industrial gearbox solutions for different valve applications. Businesses can discuss their technical requirements before selecting a suitable model.
Maintenance Tips for Better Performance
Regular maintenance can help extend gearbox service life. Operators should inspect the gearbox periodically for visible damage or unusual operating conditions.
Lubrication should follow the manufacturer’s recommendations. Using the correct lubricant can help reduce friction and gear wear.
Operators should also watch for unusual noise, vibration, or increased operating resistance. These signs may indicate a problem that needs inspection.
Furthermore, avoid forcing the valve when it becomes difficult to operate. Excessive force can damage the gearbox or valve components.
A planned maintenance routine can help identify issues before they cause unexpected downtime.
Frequently Asked Questions
1. What is a Non Rising Valve Gearbox?
A Non Rising Valve Gearbox is a mechanical device used to operate valves with non-rising stems. It transfers torque to the valve while the stem rotates in place.
2. What is the main benefit of a non-rising stem design?
The stem does not move vertically during operation. Therefore, the arrangement can be useful where vertical installation space is limited.
3. Where are these gearboxes commonly used?
They are used in water treatment, pipelines, manufacturing facilities, utility systems, and other industrial applications.
4. How do I choose the correct gearbox?
Check the valve size, operating torque, gear ratio, mounting arrangement, operating frequency, and environmental conditions.
5. Does a Non Rising Valve Gearbox require maintenance?
Yes. Regular inspection and proper lubrication can help maintain smooth operation and extend gearbox service life.
Conclusion
A Non Rising Valve Gearbox can provide efficient and controlled operation for valves with non-rising stems. Its mechanical advantage can reduce manual effort and support reliable industrial flow control.
The compact arrangement can also offer practical benefits in areas with limited vertical space. However, correct sizing remains essential for dependable performance.
Jayveer Enterprise provides gearbox solutions for industrial valve applications. Businesses should evaluate their valve specifications and operating conditions before selecting a suitable gearbox.
For your next valve project, consult an experienced gearbox supplier and select a solution that matches your technical requirements.
